4,800 Lumen LED for 5-6 D Maglite | Ultra-High Power 12x LED Conversion
$145.99
Sale price $145.99Regular price
Instantly convert your low powered Maglites into a SUPER POWERED LED flashlight!

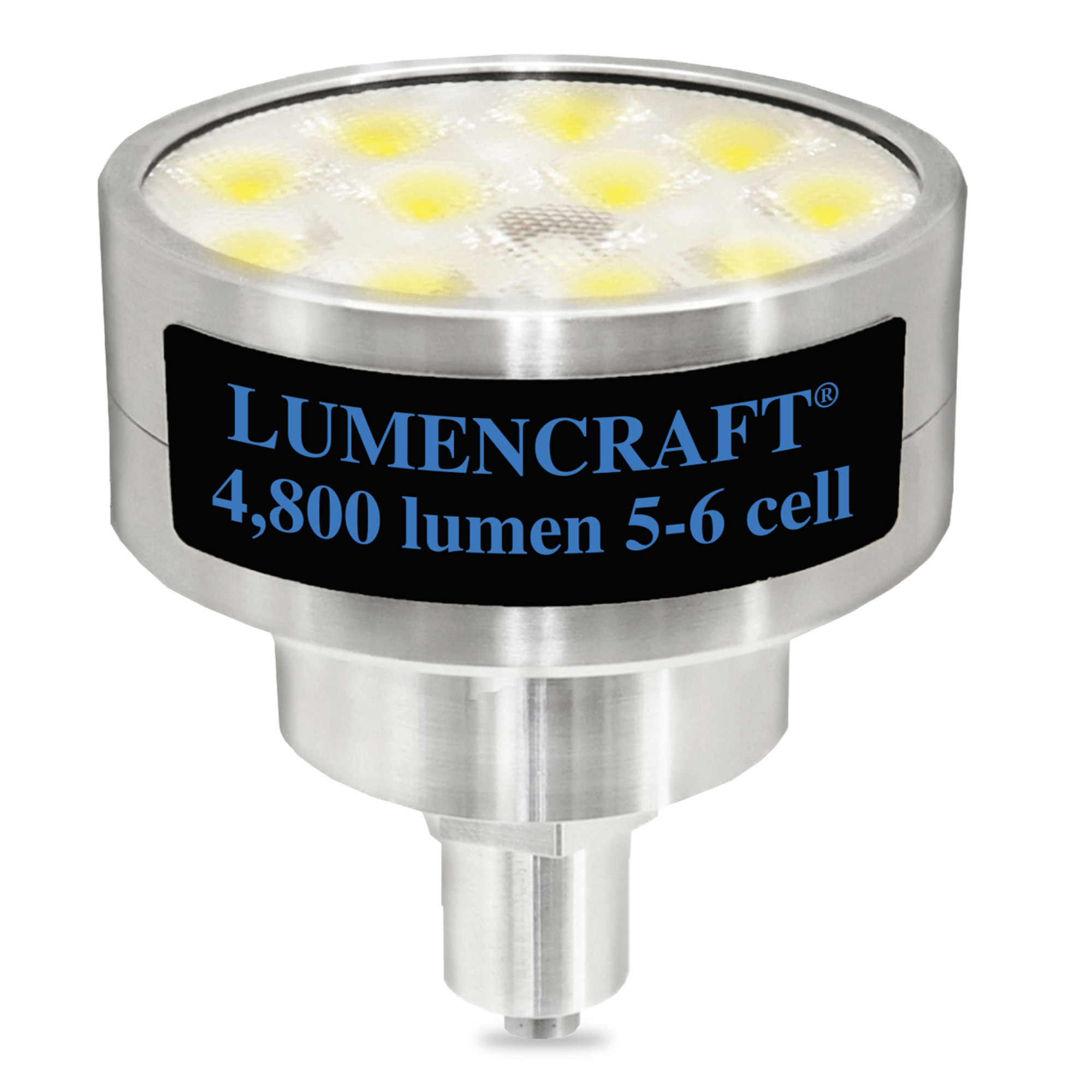

This easy to use LED conversion kit will take your under performing Maglite flashlight and turn it into a modern day champion. Twelve Lattice power LED emitters and the Lumencraft® 6080ma driver pound out up to 4,800 retina searing lumens (output of the bulbs is based on use of 6x NIHM rechargeable cells. Also a great option is two IMR 26650 cells. Alkaline cells will power the bulb up at a reduced output so are best used as backup). Don't be fooled; many other sellers make claims of having multi thousand lumen flashlights and parts, however few of them can even touch their advertised numbers. (flashlight host is not included in sale).
Unlike these other lights Lumencraft® Flashlights™ Maglite upgrades come with the Actual Lumen Guarantee. Because of the superior driver performance and use of only premium grade components our products deliver on output. So, if your tired of being underwhelmed by competitors products, why not step into something great today.
In addition to the astounding output the new version of Lumencraft Flashlights Superbulb™ comes with the most flexible user interface to date. Created by BLF member DrJones this UI has something to offer for everyone.

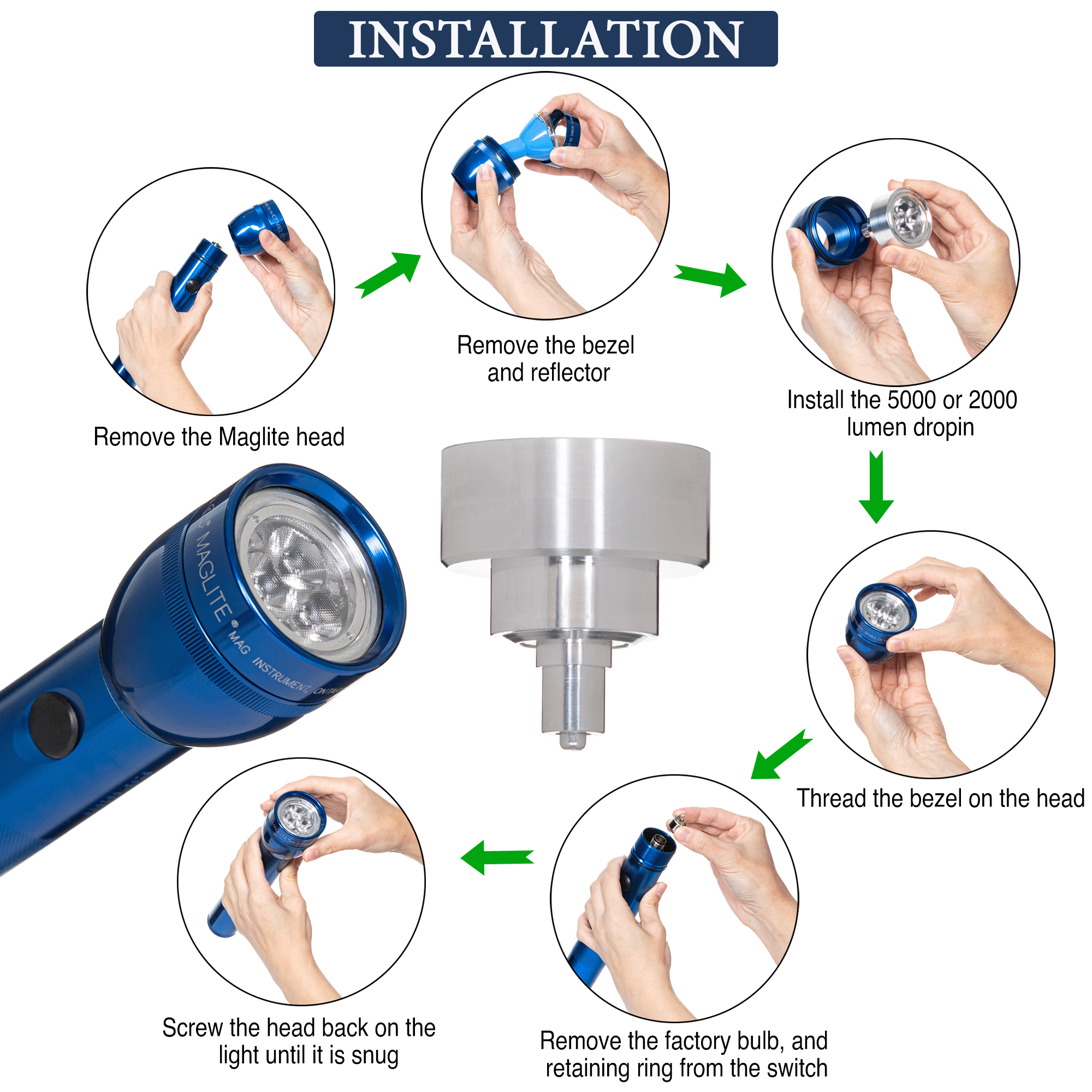

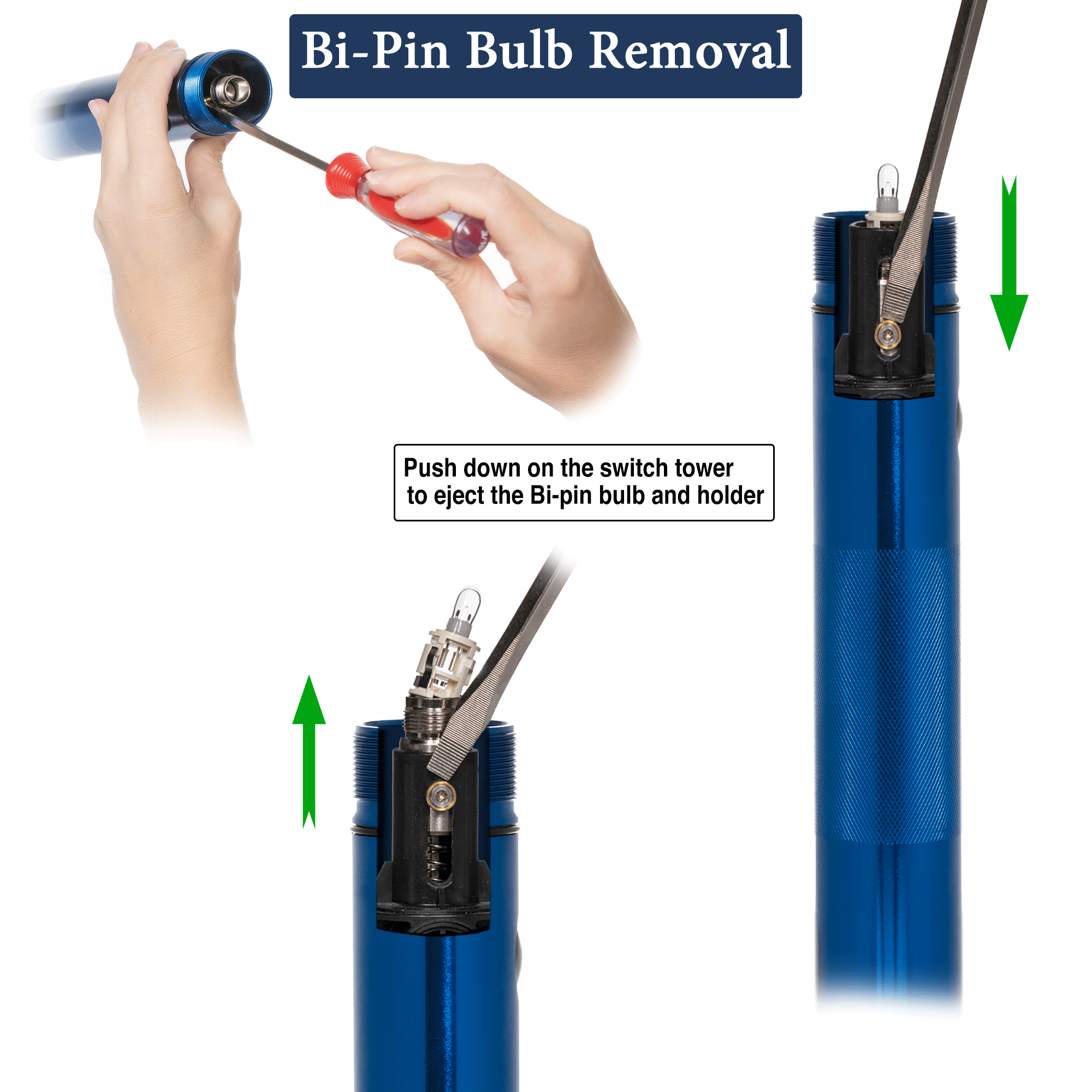

Install To install the 4,800 lumen dopin, start by unscrewing and removing the head of your Maglite flashlight. Next remove the factory reflector, bulb retaining ring and bulb from the switch tower (if you have the bi-pin bulb you can press down on the tower to eject the plastic bulb holder). Next remove the bezel and lens from the top of the Maglite head. Insert the 3,500 lumen bulb into the head. Place the lens over the dropin and thread the bezel back down until snug. Screw the head back on to the maglite until it is just "snug" onto the body.
This bulb is for use with the voltage of 5 - 6D cells ONLY (NIMH are best),do not exceed the voltage. However if you want power it with other cells such as a pair of 26650s a 2D to 2x26650 kit is available in the shop. This video shows how to install it. If you want to use the 2x26650 kit in a larger mag than 2D just get the 2D kit and add dummy D cells in before you install the battery sleeve. Example a 4D light would need 2 dummy D cells and the 2x 26650 body kit. https://lumencraft.com/-diy-parts/35-dummy-c-an-d-cell-batteries.html
If your Maglite is very old you can check to see if this bulb will fit YOUR maglite by doing this.
Installation and troubleshooting.
In addition to the astounding output the new version of Lumencraft Superbulb™ comes with the most flexible user interface to date. Created by BLF member DrJones this UI has something to offer for everyone.
The bulb is a simple 3 mode Low, Medium, High with memory by default, however its easily customized for those who like a taste of something different.
The optional glass lens is hardened glass that is more resistant to breaking and scratching than traditional glass. A scratch free lens will have better light transmittance and is easy to clean.
Run time approximation(based on use of 2x 26650 cells): High: 50 min Med: 3.5 hours Low: 87 hours
User interface (2024 update):
DrJones Guppy2drv. This firmware allows the ultimate in user customizability, with 22 built-in mode groups, that the user can select via a series of button presses and the option of user programmable turbo timer that will automatically step the power down to 50% after the set time is hit (see below for instructions). ML on the chart means Moon Light which is is less that one percent power.
User Selectable Groups:
2% - 25% - 100% | Memory
100% - 25% - 2% | No Memory
2% - 25% - 100% - Strobe - Beacon | Memory
2% - 25% - 100% - Strobe - Beacon | No Memory
15% - 100% | Memory
100% - 15% | No Memory
100% Only
100% - Strobe | No Memory
Strobe - 100% | No Memory
ML - 5% - 33% - 100% | Memory
100% - 33% - 5% - ML | No Memory
ML - 5% - 33% - 100% - Strobe - Beacon | Memory
ML - 5% - 33% - 100% - Strobe - Beacon | No Memory
ML - 100% | No Memory
100% - ML | No Memory
ML - 100% | Memory
ML - 5% - 15% - 50% - 100% | Memory
ML - 5% - 15% - 50% - 100% | No Memory
100% - 50% - 15% - 5% - ML | Memory
100% - 50% - 15% - 5% - ML | No Memory
2% - 15% - 50% - 100% | Memory
2% - 15% - 50% - 100% | No Memory
Guppydrv Instructions
To switch mode groups: rapidly tap the switch 8 times, the light will then enter the programming mode and begin to flash. With the light in programming mode, tap the switch the same number of times as your desired mode group. The light will blink and your mode group will be memorized.
Example: To select mode group 3, tap the switch 8 times quickly to enter programming mode. As soon as the light enters programming mode and beings flashing, tap the switch three times. The light will blink to recognize the mode group change.
To set the turbo timer: rapidly tap the switch 8 times, the light will then enter the programming mode and begin to flash. With the light in programming mode, tap the switch 30 times to enter the turbo timer set mode. The light will then switch to 100% power. When the light is at the desired temperature for the turbo step down, turn the light off. The turbo timer will then be set. The turbo timer steps the light down to 50% regardless of the mode group set.
To disable the turbo timer simply go into program and cut it off in >3 seconds.
Here is a short video on how this UI works.
Disclaimer: Lumencraft is not affiliated with Mag instrument inc. which owns the MAG family of trade marks including Mag-Lite and Mini-Maglite. Lumencraft products are not made, endorsed, recommended, licensed or approved by Mag instruments inc.
